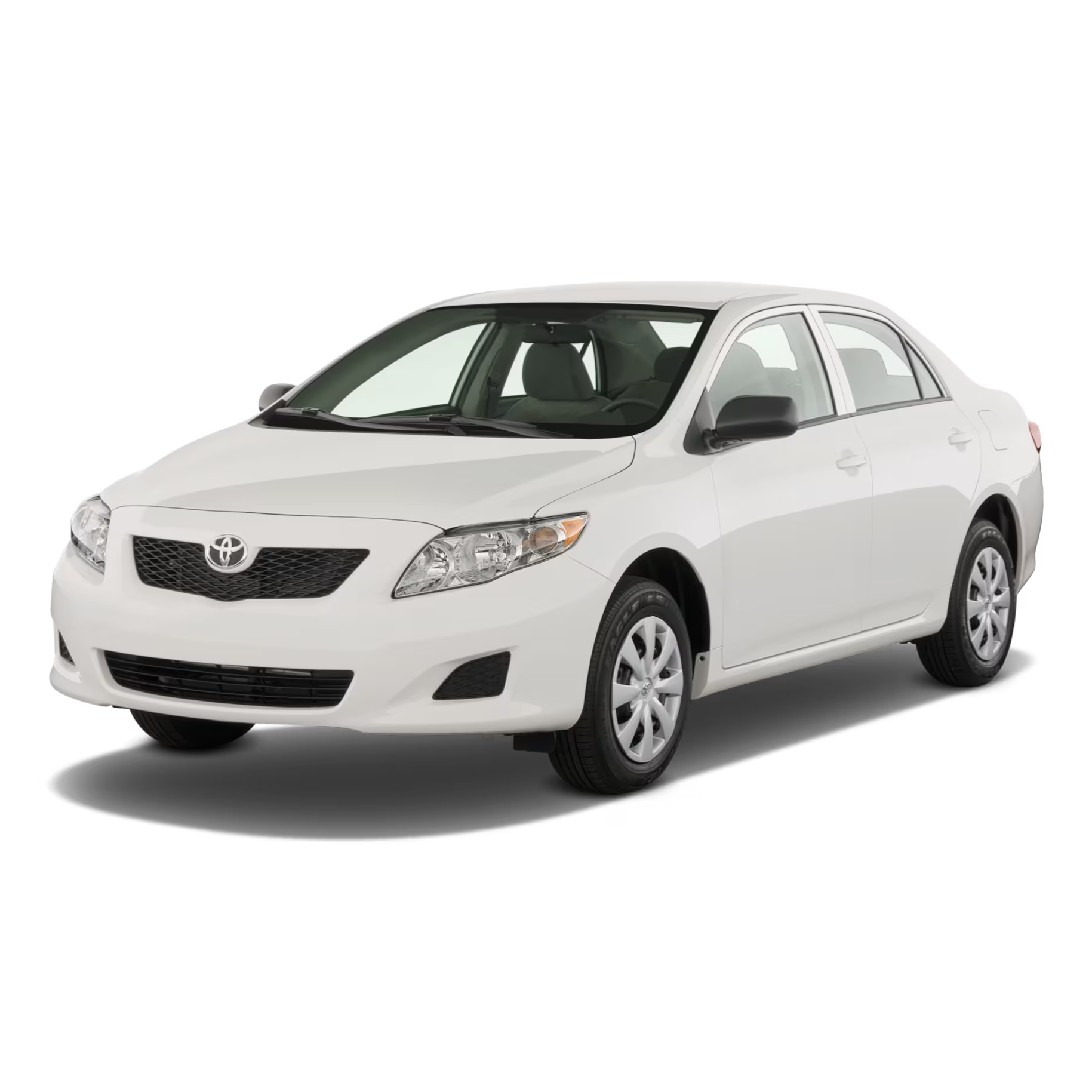

Toyota Corolla Tenth generation (E140, E150) Electrical Wiring Diagrams & Schematics

Access meticulously crafted Electrical Wiring Diagrams & Schematics for the Toyota Corolla Tenth generation (E140, E150) featuring premium graphics and illustrations.

Format: PDF

Pages: 482

Delivery: The download link will be promptly delivered to your email upon completing the checkout process.

Coverage: Toyota Corolla Tenth generation (E140, E150)

Contents:

• ABS (with VSC, Except TMC Made), TRAC (Except TMC Made), VSC (Except TMC Made)

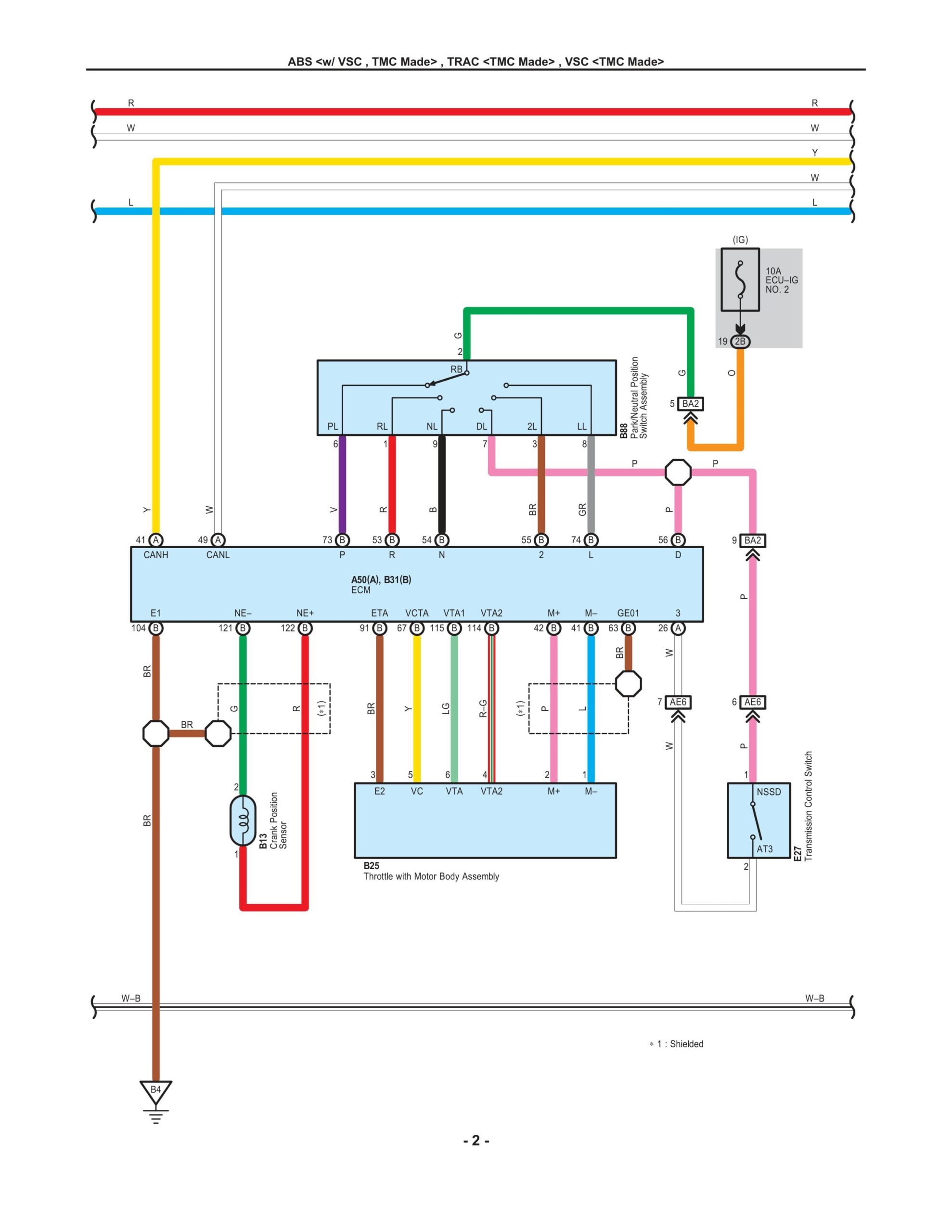

• ABS (with VSC, TMC Made), TRAC (TMC Made), VSC (TMC Made)
• ABS (without VSC, Except TMC Made)
• Audio System (Built-In Type Amplifier, Except TMC Made), Navigation System (Except TMC Made)
• Audio System (Separate Type Amplifier, Except TMC Made)
• Audio System
• Automatic Air Conditioning
• Automatic Glare-Resistant EC Mirror with Compass
• Back-Up Light (Except TMC Made)
• Back-Up Light (TMC Made)
• Charging (Except TMC Made)
• Charging (TMC Made)
• Cigarette Lighter

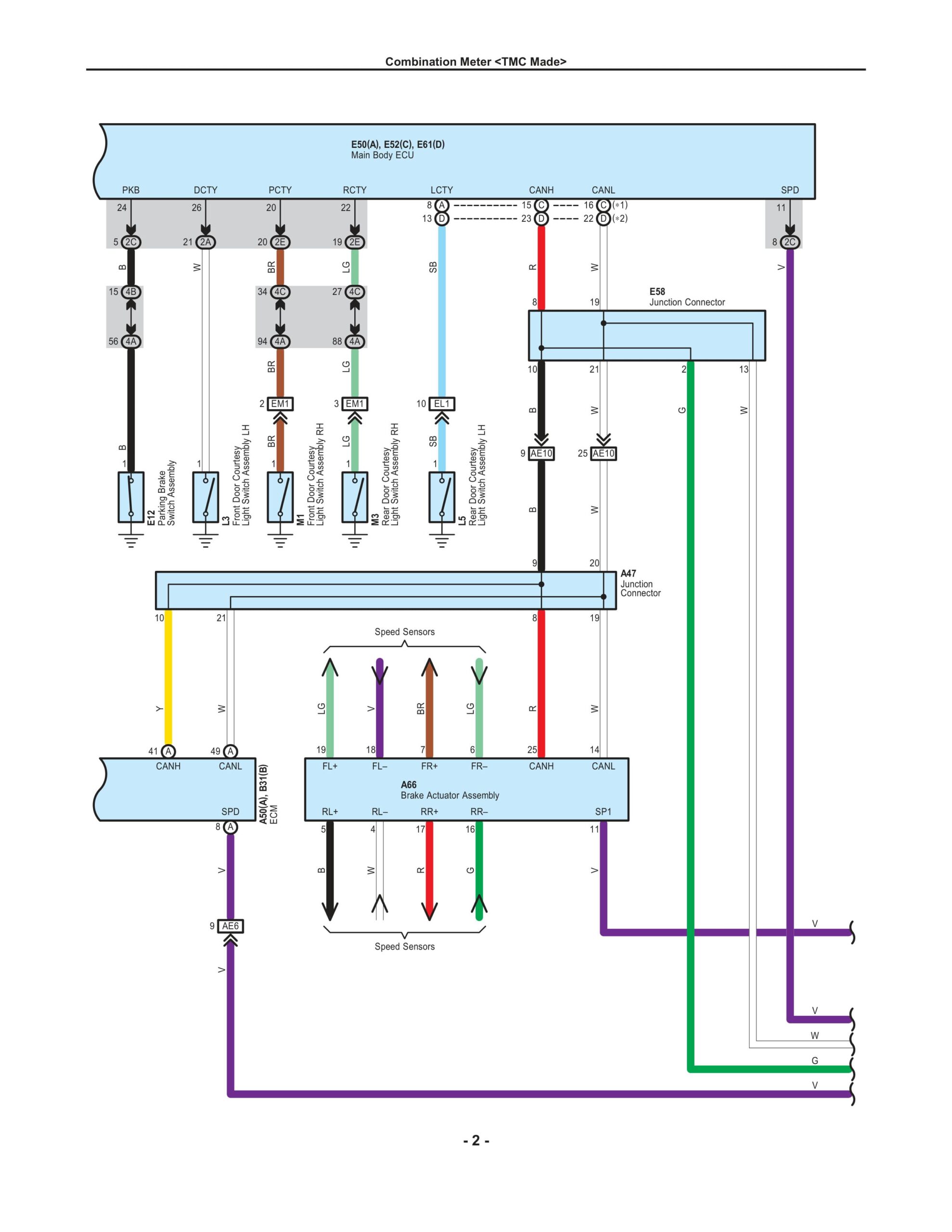

• Combination Meter
• Cooling Fan (2AZ-FE, Except TMC Made)
• Cooling Fan (2ZR-FE, Except TMC Made)
• Cooling Fan (TMC Made)
• Cruise Control (2AZ-FE, Except TMC Made)
• Cruise Control (2ZR-FE, Except TMC Made)
• Cruise Control (TMC Made)
• Data Link Connector 3 (Except TMC Made)
• Data Link Connector 3 (TMC Made)
• Door Lock Control
• Electronically Controlled Transmission and AT Indicator (2AZ-FE, Except TMC Made)
• Electronically Controlled Transmission and AT Indicator (2ZR-FE, Except TMC Made)
• Electronically Controlled Transmission and AT Indicator (TMC Made)
• Engine Control (2AZ-FE, Except TMC Made)
• Engine Control (2ZR-FE, Except TMC Made)
• Engine Control (TMC Made)
• Engine Immobiliser, Push-Button Start, Steering Lock, Wireless Door Lock Control, Smart Key System
• Engine Immobiliser System (without Smart Key System, TMC Made)
• EPS (Except TMC Made)
• EPS (TMC Made)
• Front Fog Light (Except TMC Made)
• Front Fog Light (TMC Made)
• Front Wiper and Washer (Except TMC Made)
• Front Wiper and Washer (TMC Made)
• Ground Point (Except TMC Made)
• Ground Point (TMC Made)
• Headlight (Except TMC Made)
• Headlight (TMC Made)
• Horn (Except TMC Made)
• Horn (TMC Made)
• Ignition (Except TMC Made)
• Ignition (TMC Made)
• Illumination (Except TMC Made), Taillight (Except TMC Made)
• Illumination (TMC Made), Taillight (TMC Made)
• Interior Light
• Key Reminder (without Smart Key System, TMC Made)
• Light Reminder (Except TMC Made)
• Light Reminder (TMC Made)
• Manual Air Conditioning
• Mirror Heater (Except TMC Made), Rear Window Defogger (Except TMC Made)
• Mirror Heater (TMC Made), Rear Window Defogger (TMC Made)
• Multiplex Communication System (CAN, Except TMC Made)
• Multiplex Communication System (CAN, TMC Made)
• Power Outlet
• Power Seat
• Power Source (Except TMC Made)
• Power Source (TMC Made)
• Power Window (Except TMC Made)
• Power Window (TMC Made)
• Remote Control Mirror (Except TMC Made)
• Remote Control Mirror (TMC Made)
• Seat Belt Warning
• Seat Heater
• Shift Lock (Except TMC Made)
• Shift Lock (TMC Made)
• Sliding Roof
• SRS
• Starting (without Smart Key System, Except TMC Made)
• Starting (without Smart Key System, TMC Made)
• Stop Light (Except TMC Made)
• Stop Light (TMC Made)
• Theft Deterrent
• Tire Pressure Warning System (Except TMC Made)
• Tire Pressure Warning System (TMC Made)
• Turn Signal and Hazard Warning Light (Except TMC Made)
• Turn Signal and Hazard Warning Light (TMC Made)
• Wireless Door Lock Control (without Smart Key System . TMC Made)
