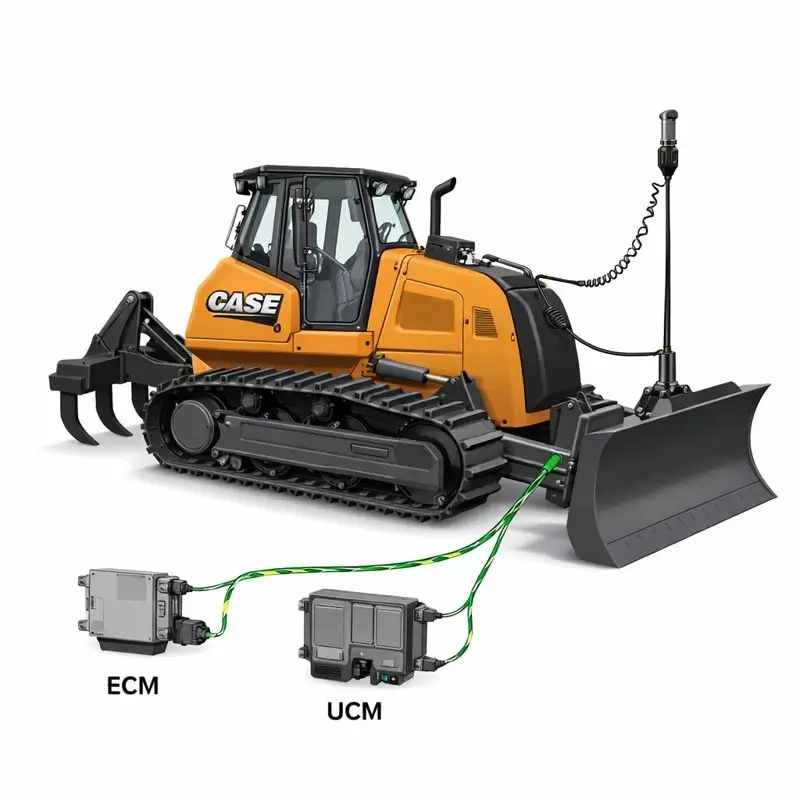

CASE M-Series Crawler Dozers – Fault Codes and Diagnostic Reference

The manual serves as a comprehensive troubleshooting and fault-isolation reference for CASE M-Series Crawler Dozers, enabling technicians to identify electrical, mechanical, and communication failures precisely.
It organizes fault codes into six major ranges and provides a detailed fault-to-description table, including:

• Vehicle and sensor faults (1000–1999) — seat switch, alternator, speed sensors, voltage references, UCM voltage, calibration errors.

• Engine faults (3000–3999) — coolant temperature, oil pressure, injector circuits, EGR, turbo actuator, DPF differential pressure, and regeneration logic.

• Hydraulic and joystick faults (4000–5999) — solenoid open/short circuits, joystick axis range errors, and plausibility faults.

• Optional and CAN-BUS faults (8000–9999) — leveling control errors, DM1 BAM packet timeouts, SCR communication, and logical data-retrieval errors.

Coverage

• Retrieving Fault Codes

  • Access sequence using control-panel keys

  • Fault display logic (Yellow/Red alarms)

  • Operator acknowledgment procedure

• General Fault Code Identification

  • Key-pad layout diagram

  • ESC + UP Arrow entry method

• Fault Code Grouping

  • 1000–1999 – Vehicle errors

  • 3000–3999 – Engine errors

  • 4000–4999 – Transmission errors

  • 5000–5999 – Electric-hydraulic system

  • 8000–8999 – Optional equipment (e.g., GPS)

  • 9000–9999 – Internal AIC/communication errors

• Erasing Faults

  • CLEAR ERRORS function navigation

  • Confirmation and system reset

• Reported Fault Codes (Complete List)

  • Vehicle Faults (1000–1999) – Seat, pedal, battery, sensor voltage, UCM calibration

  • Engine Faults (3000–3999) – Temperature, pressure, injector, EGR, rail pressure, DPF, SCR

  • Hydraulic and Joystick Faults (4000–5999) – Solenoid circuits and axis faults

  • Optional and CAN Errors (8000–9999) – Communication timeouts, logical list errors, SCR controller timeouts

Delivery

The download link will be sent to your email instantly after payment.
